Show Output Check Boxes

Show Output Check Boxes

 Top  Previous  Next

display_prop

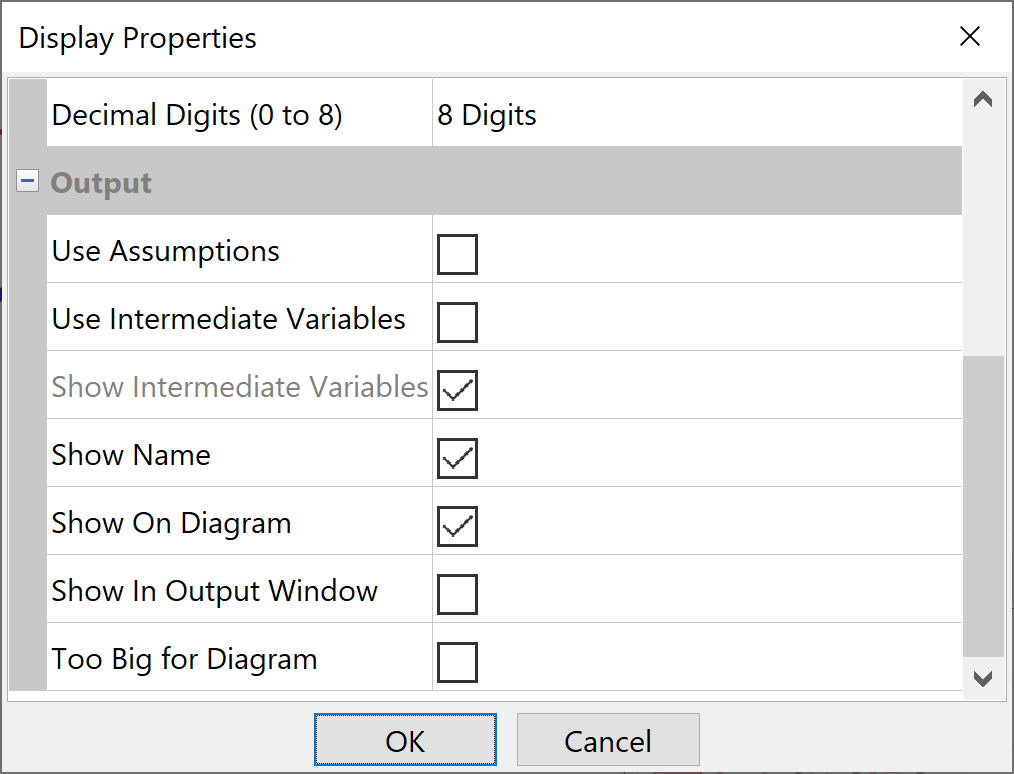

After you generate an output expression:

  1. click the output
  2. right click the mouse and select All Properties from the Selection context menu
  3. when checked, the corresponding output is displayed

Show Intermediate Variables - if the system uses intermediate variables, their definitions are displayed in the output window.

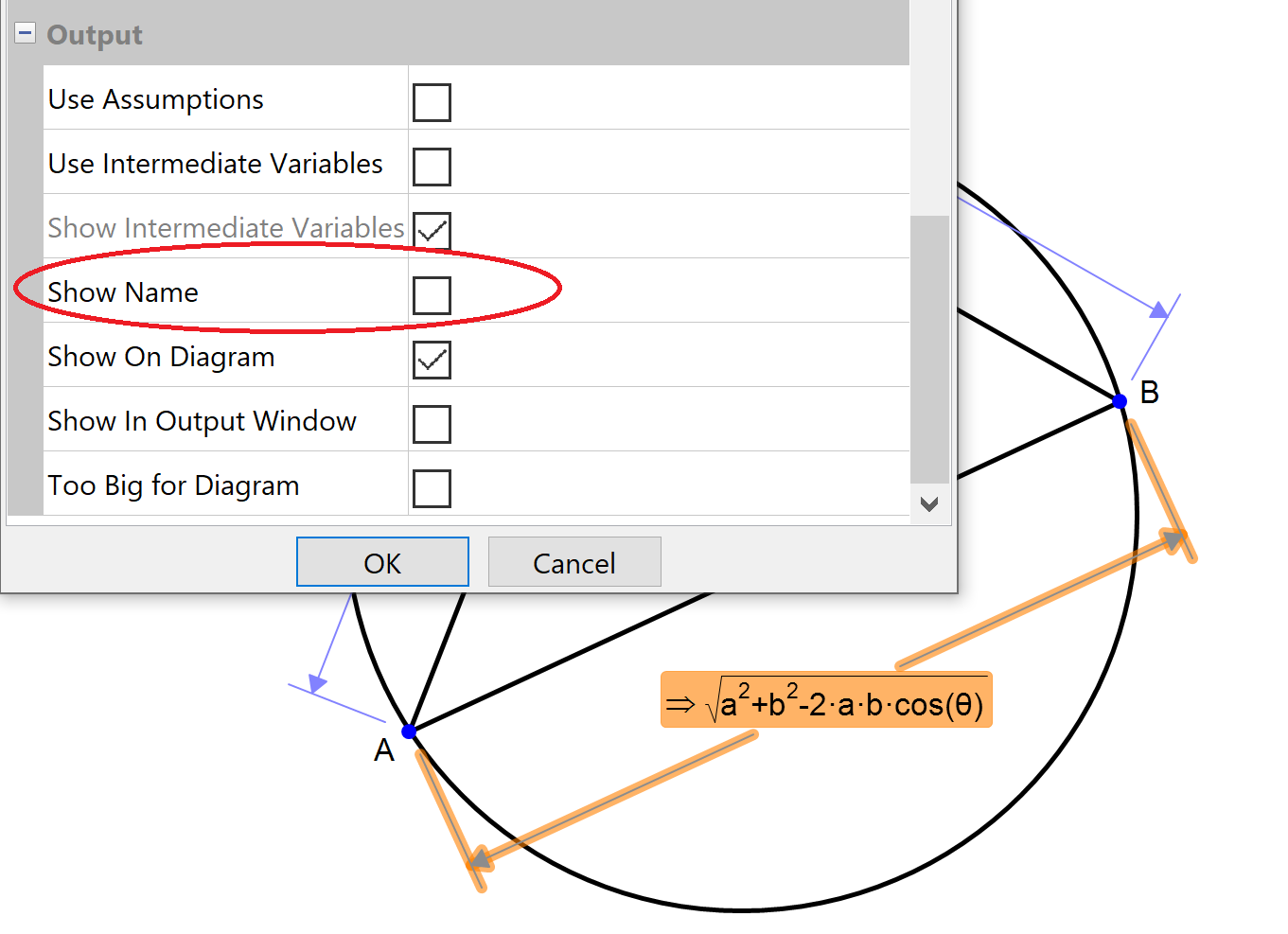

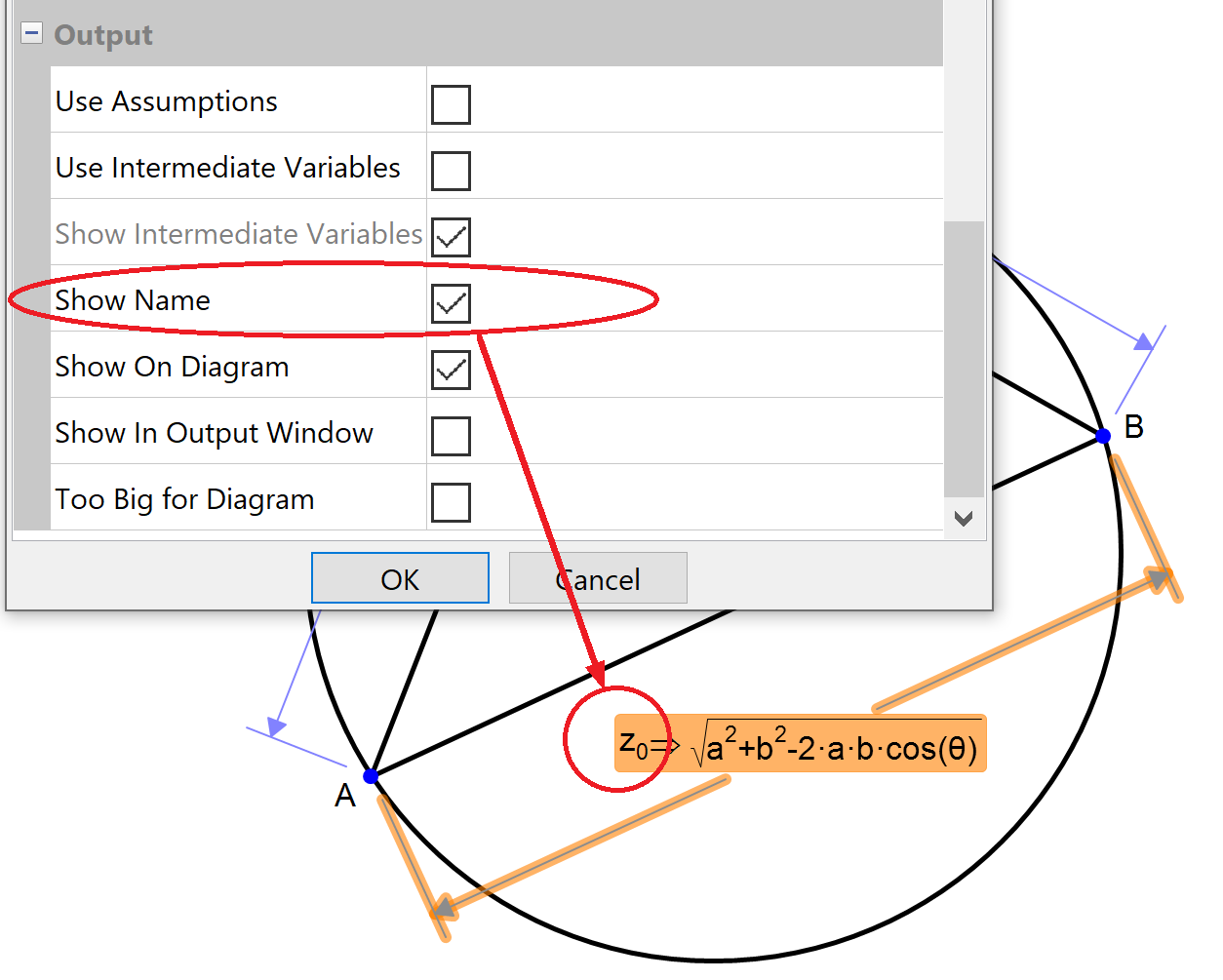

Show Name - is a term assigned by the system to the output. This name is zn where n is the sequential number of the output .

showname_f

showname_t

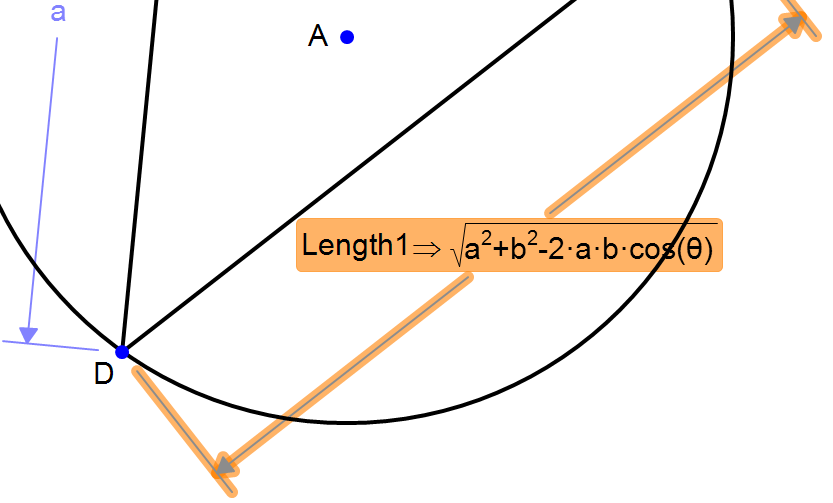

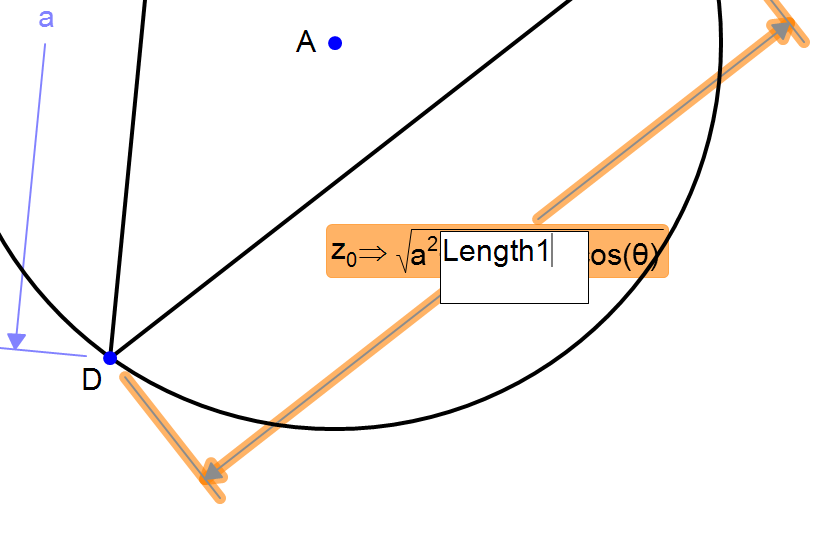

You can change the output name by double clicking the output and entering a new name in the box.



output_name_change output_name_ch1

Show On Diagram - puts the output expression on the diagram when the box is checked.

Show in Output Window - puts the output expression in the Output Window when the box is checked.  If this box is checked, then Show Name box is also checked.

Too Big for Diagram - the output expression is moved to the output window when the box is checked (Show in Output Window is also checked and Show On Diagram box will be unchecked).
