Trammel

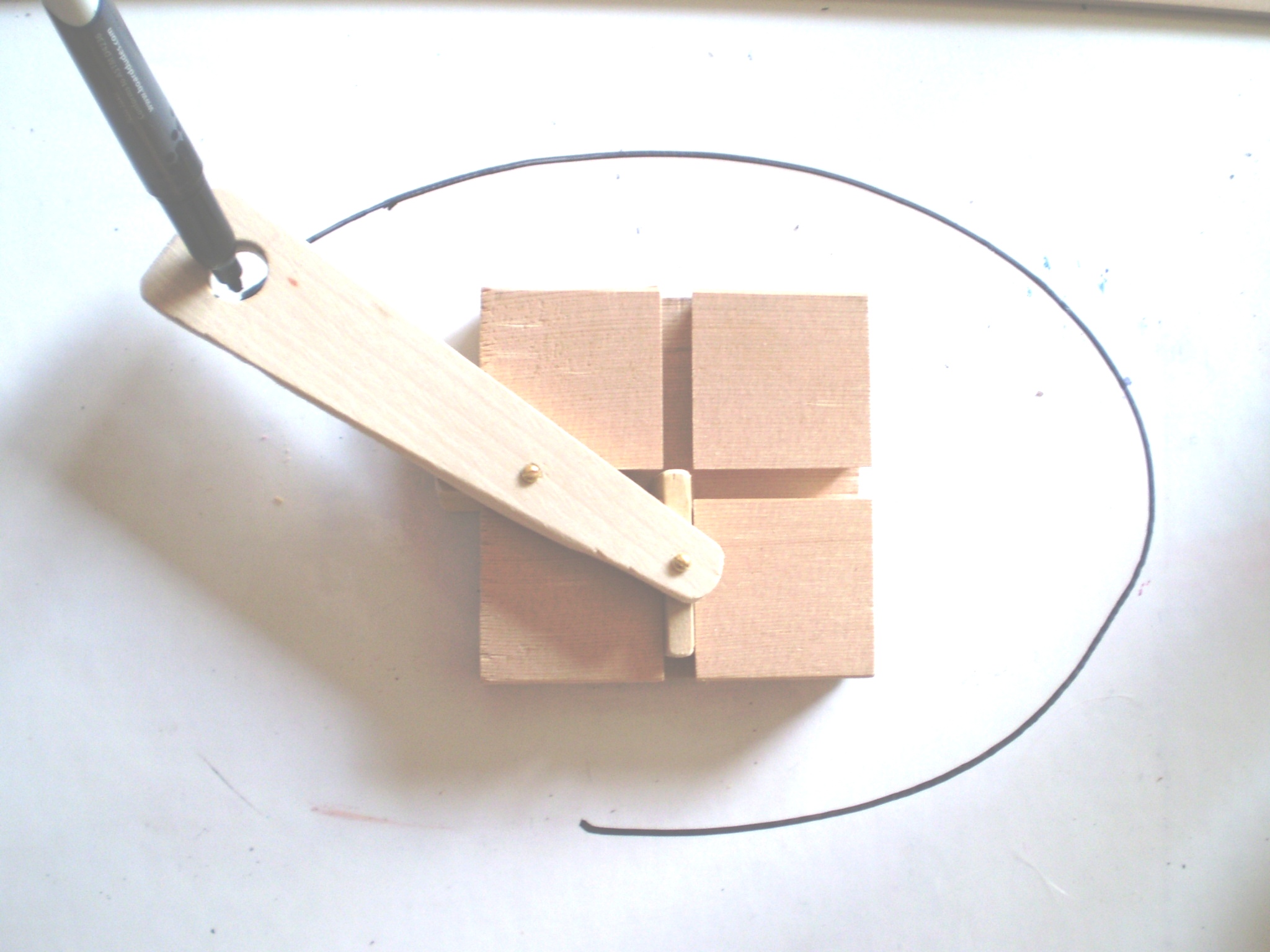

Archimedes trammel is a simple tool for drawing an ellipse.

Picture 0

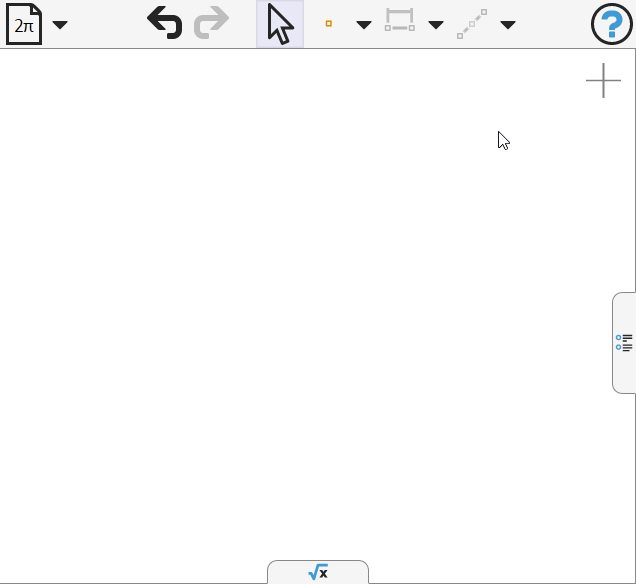

Turn on the axes. Draw a line from the y axis representing the trammel arm and a point at its intersection with the x axis.

Picture 1

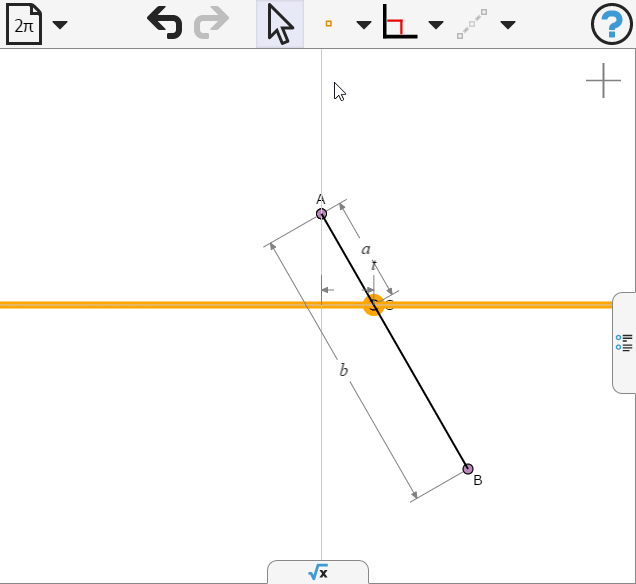

Specify the distance AC and the distance AB.

Picture 2

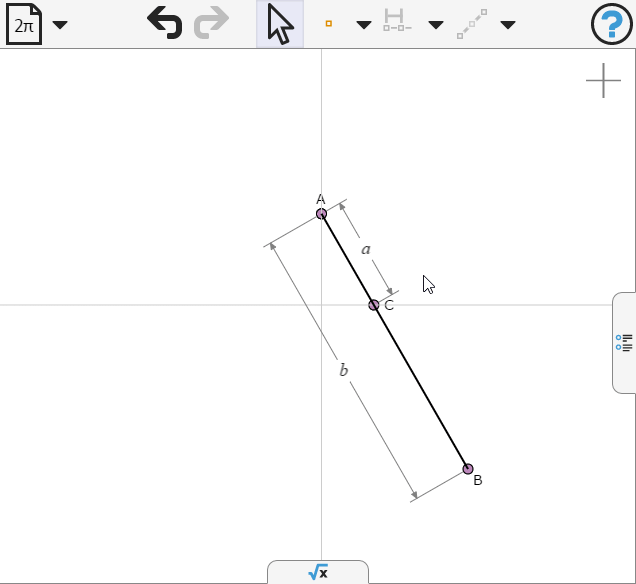

Now define the position of point C on the x axis.

Picture 3

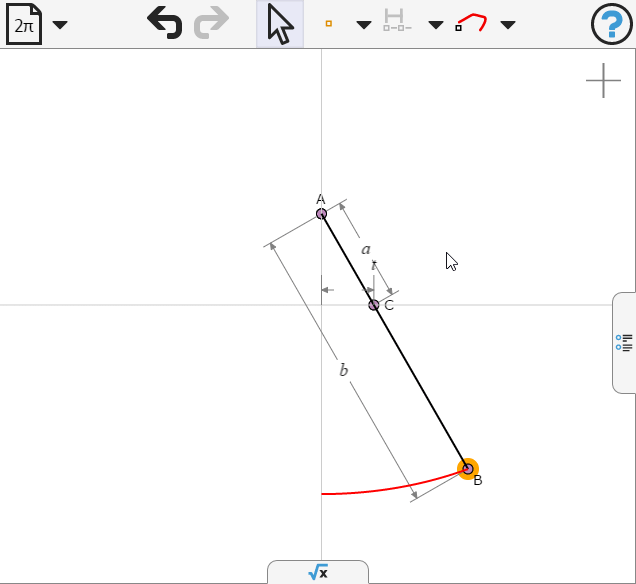

Create the locus of B as t varies

Picture 4

Dragging point C shows the trammel arm in motion.

Picture 5

Open the symbolic panel Type in equation(K0)
